Rolair 7.5 HP 60 GAL Model H75360K30

$1,572.00

41 Items sold in last 3 hours
120 People watching this product now!
Category:
Description

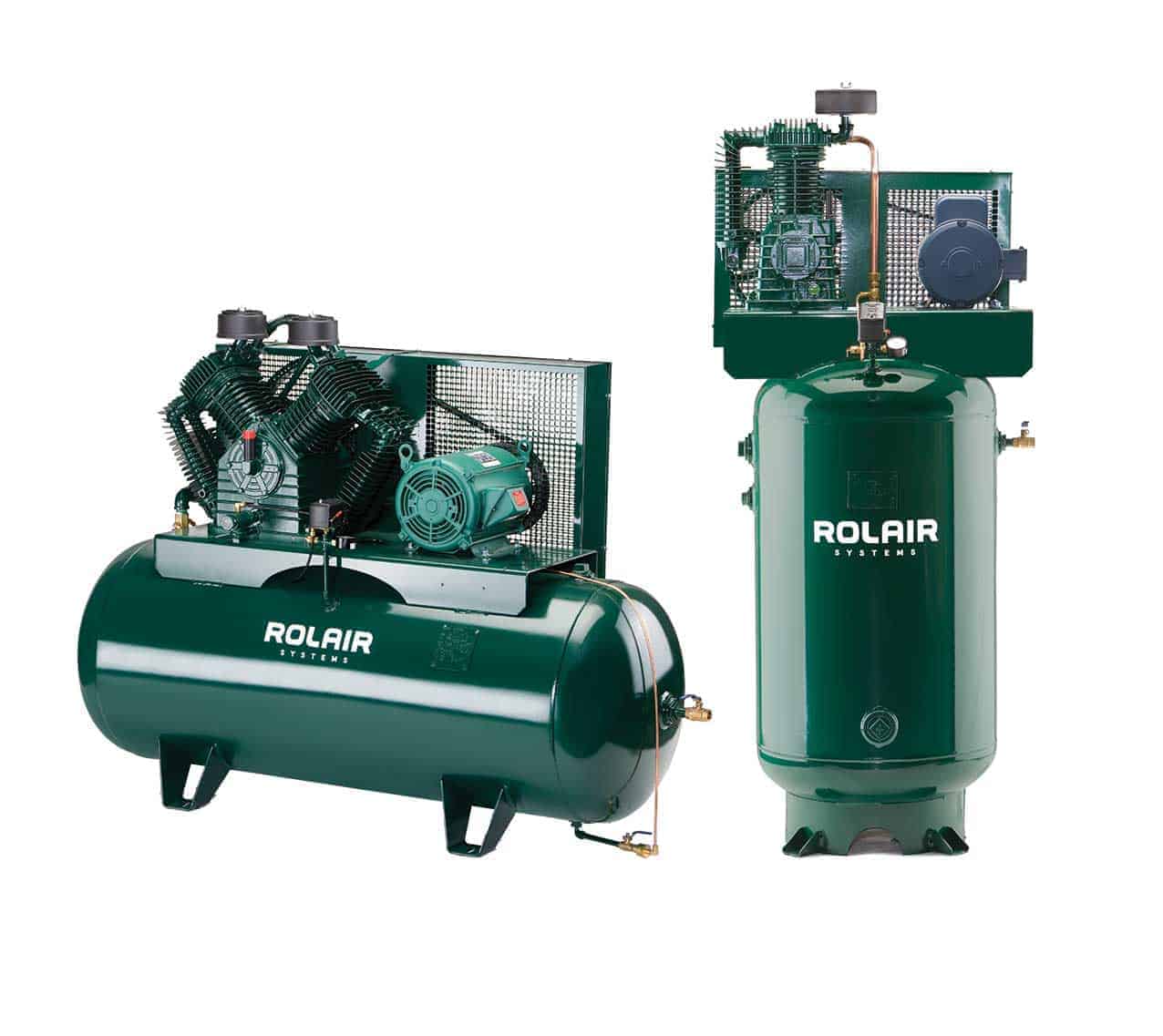

7.5 HP, two-stage electric stationary air compressors on a variety of tank configurations. Model V75380K50 shown.

Optional Equipment:Â Magnetic Starter, Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer, Air-Cooled Aftercooler.

ABOUT THE PUMP

Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPMs to Ensure Long Life and Trouble-Free Performance.

ABOUT THE MOTOR

1740 RPM, 60 Hz, Open Drip-Proof Motor. Single Phase Models Available in 208 and 230 Volt. Three Phase Models Available in 208, 230, and 460 Volt.

STANDARD EQUIPMENT

  • Pressure Switch – Start/Stop Operation,145-175 PSI Settings, On/Off Switch
  • Automatic Unloading Device for Loadless Starts
  • Heavy-Duty Brass Shut-Off Valve
  • Pressure Gauge, 0-300 PSI in 5 lb. Graduations
  • Safety Relief Valve – ASME Approved
  • Multiple V-Belt Drive
  • Intake Filter/Silencer with Replaceable Element
  • Totally Enclosed Steel Belt Guard
Weight 507 lbs
Dimensions 52 × 20 × 49 in
Compressor CFM
Compressor CFM Range
Compressor Horsepower
Horsepower Range
Compressor Tank Size
Voltage
Brand
Tank Size Range
Compressor PSI
Model
