Description

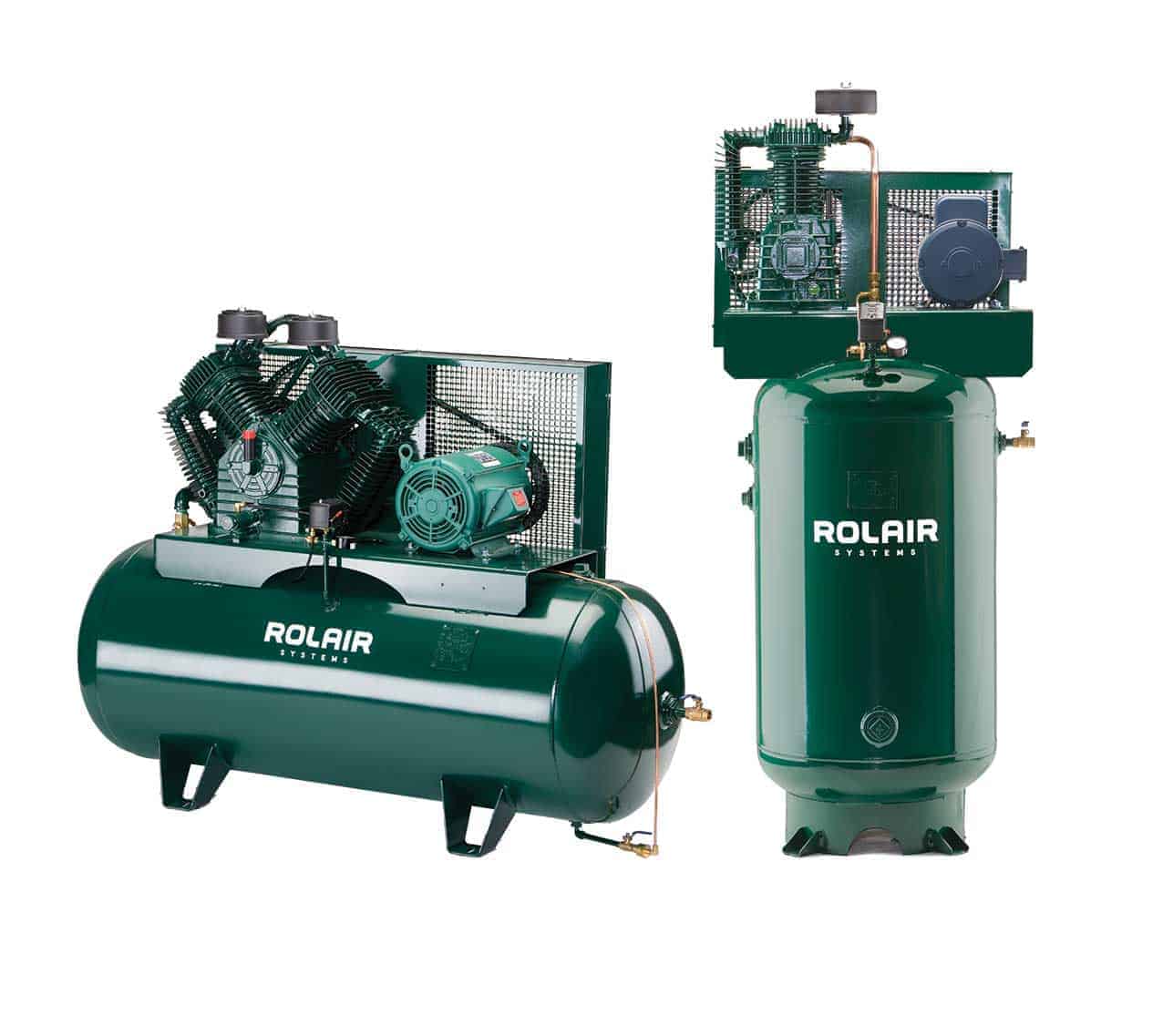

5 HP, two-stage electric stationary air compressors on a variety of tank configurations. Model V5180K30 shown.
Optional Equipment:Â Magnetic Starter, Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer, Air Cooled Aftercooler
ABOUT THEÂ PUMP
Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lammelar Reed Valves, Oil Sight Gauge, Low RPM’s to Ensure Long Life and Trouble-Free Performance.
ABOUT THEÂ MOTOR
1740 RPM, 60 Hz, Open Drip-Proof Motor. Single Phase Models Available in 208 and 230 Volt. Three Phase Models Available in 208, 230, and 460 Volt.
STANDARD EQUIPMENT
- Pressure Switch – Start/Stop Operation
- 145-175 PSI Settings
- On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve – ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
| Weight | 399 lbs |
|---|---|
| Dimensions | 30 × 20 × 75 in |
| Compressor CFM | 15.3 |
| Compressor CFM Range | 15 – 24.9 |
| Compressor Horsepower | 5 |
| Horsepower Range | 5 – 9.5 HP |
| Compressor Tank Size | 60 |
| Voltage | 208/3/60, 230/3/60, 460/3/60 |
| Brand | Rolair |
| Tank Size Range | 60-80 Gallon |
| Compressor PSI | 175 |
| Model | V5360K28 |
