Description

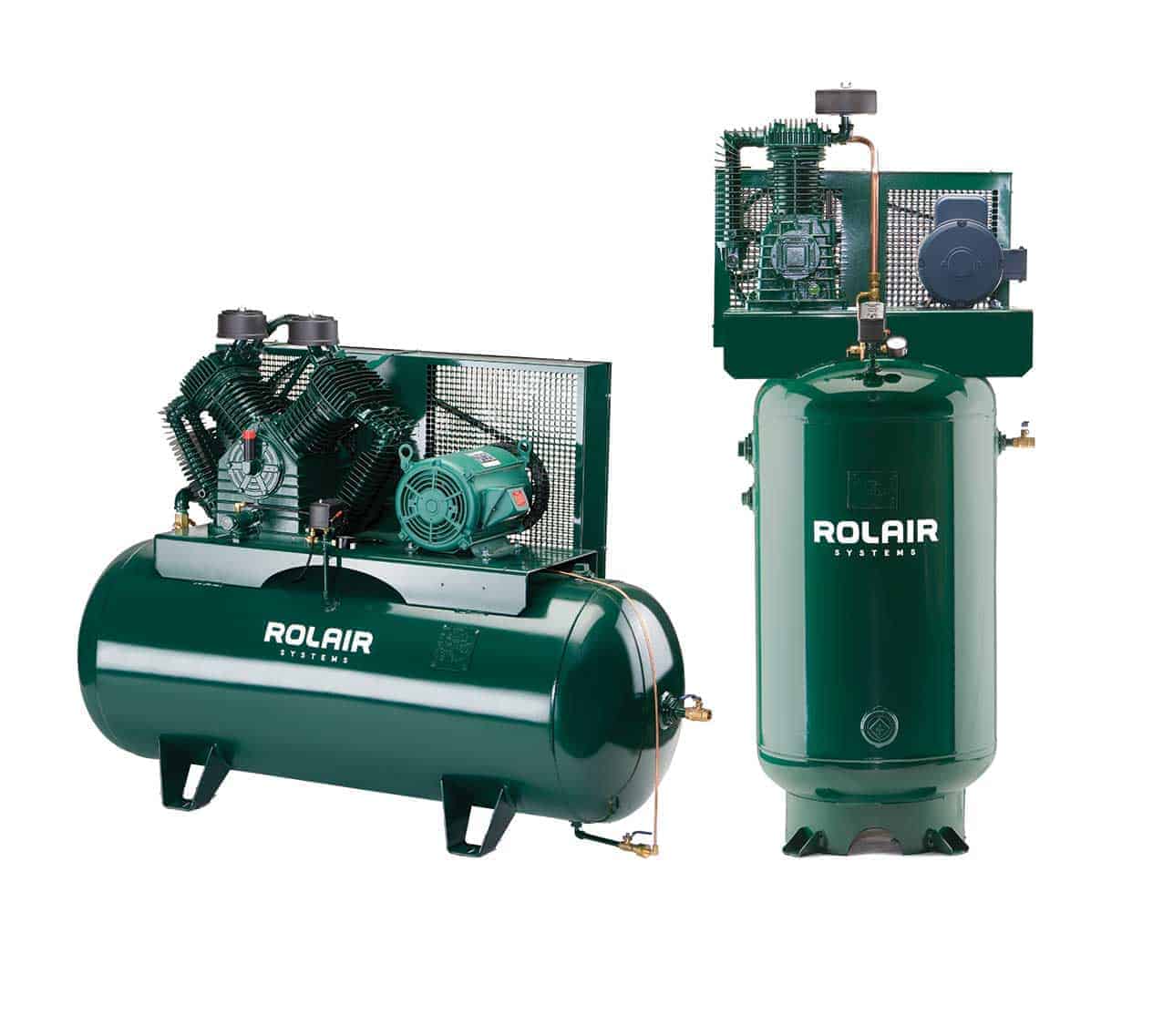

5 HP single and two-stage light industrial stationary electric air compressors. Model V5160PT03X shown.
Optional Equipment: (No optional equipment available for V5160PT03X) Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer, Air Cooled Aftercooler.
ABOUT THEÂ PUMP
Single or Two Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPMs to Ensure Long Life and Trouble-Free Performance.
ABOUT THEÂ MOTOR
3450 RPM, 60 Hz, Single Phase 230 Volt, Open Drip-Proof Motor.
STANDARD EQUIPMENT
- Pressure Switch – Start/Stop Operation,145-175 PSI Settings, On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy-Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve – ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
| Weight | 375 lbs |
|---|---|
| Dimensions | 30 × 20 × 73 in |
| Compressor CFM | 10.7 |
| Compressor CFM Range | Up to 14.9 |
| Compressor Horsepower | 5 |
| Horsepower Range | 5 – 9.5 HP |
| Compressor Tank Size | 60 |
| Voltage | 230/1/60 |
| Brand | Rolair |
| Tank Size Range | 60-80 Gallon |
| Compressor PSI | |
| Model | V5160K24X |
