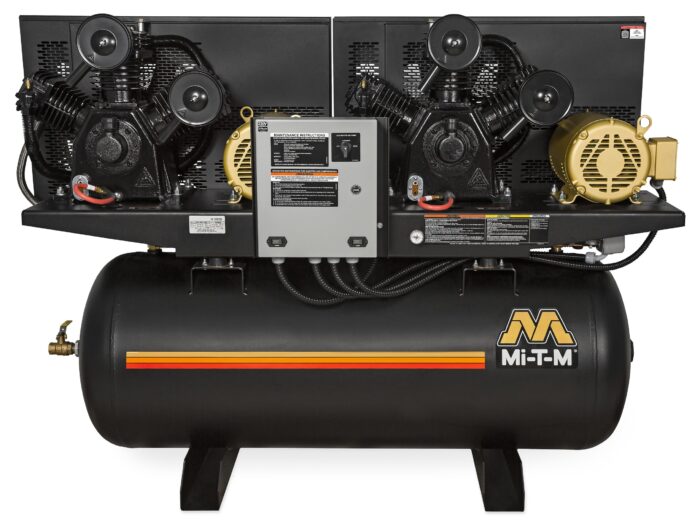

Mi-T-M 10HP 120GAL STATIONARY ELECTRIC ADD-46310-120H
$6,660.00
ADD-46310-120H
ADD Series – 10.0 HP Duplex Horizontal
The horizontal 120-gallon air compressors can be installed out of the way in workshops and service bays where compressed air is a required utility.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer · 3 position switch – compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)
Other Models Available:
ADD-20310-120H 200V, 3Ø, 61.6A
ADD-23310-120H 230V, 3Ø, 53.6A
ADD-46310-120H 460V, 3Ø, 26.8A
Specifications
CFM @ PSI
– 68.4 @ 175
Horsepower/Motor
– 10.0 HP, 230V, 1Ø, 78.0A
Pump RPM
– 990
Tank Size
– 120-gallon
Bolt Down (LxW)
– 34.5 x 23.5 in.
Weights & Dimensions
Net Weight
– 1121.00 lbs.
Shipping Weight
– 1200.00 lbs.
Length
– 74.00 in.
Width
– 26.50 in.
Height
– 58.00 in.
Options
IX-0001 Vibration Isolator Pads
– Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0006 Electric Tank Drain
– Automatically drains liquid from compressor tank
IX-0032 Pneumatic Tank Drain
– Automatically drains liquid from compressor tank
IX-0034 After Cooler
– Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
IX-0064 Low Oil Monitor
– Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0065 Low Oil Monitor
– Low oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0066 Low Oil Monitor
– Low oil sensor does not allow unit to start when oil levels fall below an adequate level
| Weight | 1200 lbs |
|---|---|
| Compressor CFM Range | 45 – 79.9 |
| Compressor PSI | 175 |
| Voltage | 460/3/60 |
| Compressor Horsepower | 10 |
| Horsepower Range | 10 – 20 HP |
| Compressor Tank Size | 120 |
| Tank Size Range | 90-200 Gallon |
| Brand | Mi-T-M Corporation |
| Model | ADD-46310-120H |
| Cooling | |
| Compressor CFM | 68.4 |
