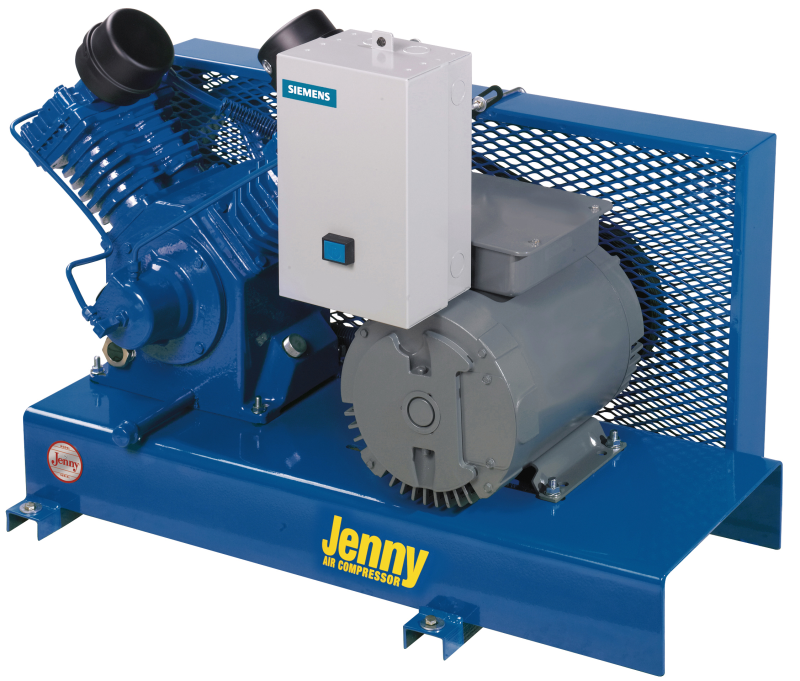

Jenny U75B-B 7.5HP BASE MOUNT Compressor
£3,120.00
47
Items sold in last 3 hours
120
People watching this product now!
Description
Standard Features
- Heavy-duty single or two stage cast iron compressor pump Made in Somerset, PA USA
- Splash lubricated
- Belt driven with a large flywheel for extra cooling and easier start-up
- Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
- Directional air shroud for reduced pump temperatures
- Totally enclosed heavy-duty belt guard
- Powder coated, extra heavy steel base plate
- Large canister intake filter with replaceable filter elements
- Pressure relief safety valve
- Pressure gauge
Electric Units
- Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
- Control group (not mounted)
- Check valve
- Magnetic starter is included on all 5 HP and larger units
- Industrial/Commercial grade UL listed electric motor
- Thermal overload motor protection
| Weight | 504 lbs |
|---|---|
| Dimensions | 27 × 48 × 51 in |
| Model | U75B-B |
| Compressor Horsepower | 7.5 |
| Horsepower Range | 5 – 9.5 HP |
| Compressor Tank Size | BASE MOUNT |
| Tank Size Range | Base Mount |
| Voltage | 200/3/60, 230/1/60, 230/3/60, 460/3/60, 575/3/60 |
| Compressor CFM | 27.2 |
| Compressor CFM Range | 25 – 44.9 |
| Compressor PSI | 145-175 |
| Brand | Jenny Compressors |
| Cooling |
