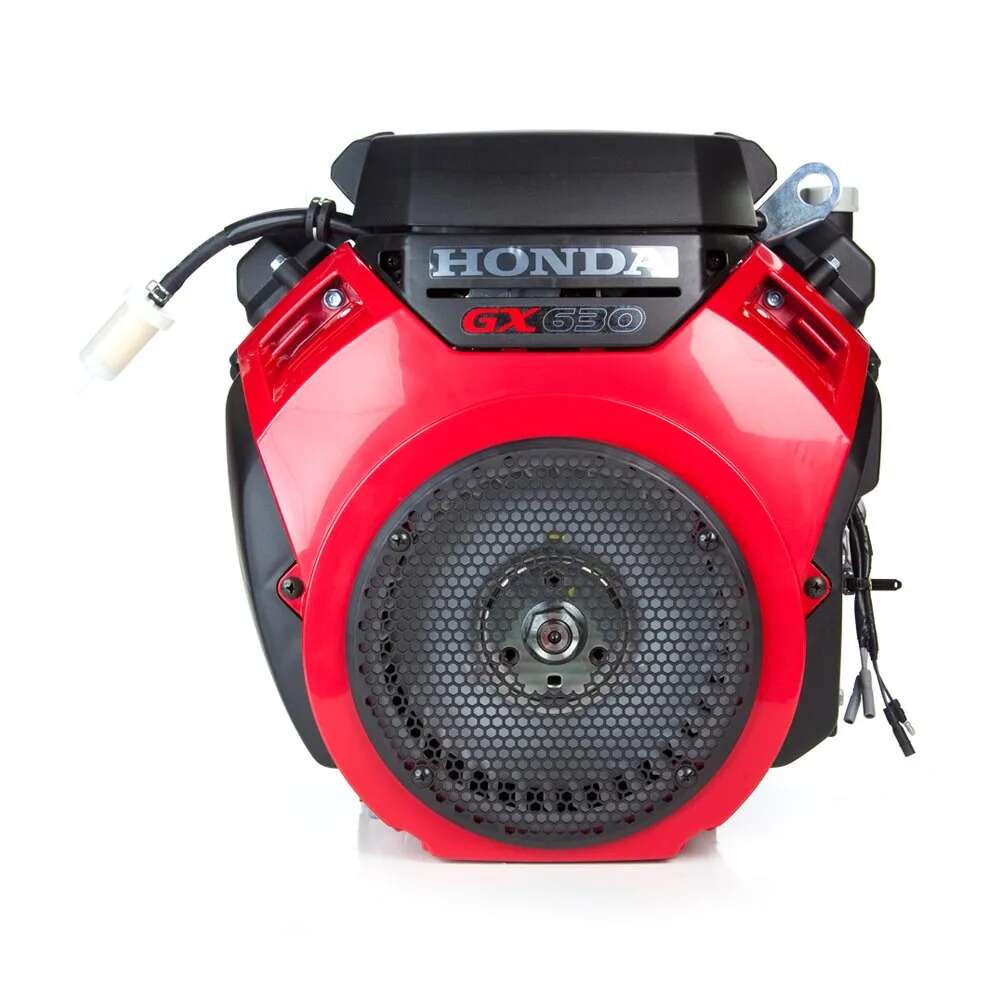

Honda GX630 QAF Horizontal Engine
£809.00
48
Items sold in last 3 hours
60
People watching this product now!
Description
Honda GX630 QAF / GX630RHQAF V-Twin Horizontal OHV Engine, 630cc, 20.8 Net HP, 1″ x 2 29/32″ Shaft,Tapped 3/8-24, 1/4″ Keyway, Electric Start, 17 Amp Charging System, No Key Switch, No Throttle or Choke Controls, Muffler Not Included
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX630-QAF |
| REPLACES MODELS | GX620K1-QAF1, GX620-QAF1 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 110 |
| DISPLACEMENT | 688cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 2-29/32″ |
| CRANKSHAFT LENGTH | 2-29/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Integrated |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 68 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Two Barrel Float Valve, Internal Vent |
| CHOKE CONTROL | Remote (Wire) |
| BOLT CIRCLE | 5,6-1/2,7-3/4 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
